Giai photnics co. , ltd

780nm bandpass filter, suitable for CCTV monitor with CMOS chip and CCD cameras, black and white and color optical filter, high transmittance of visible light, 780nm transmittance is high, strong interference resistance, color with less distortion.

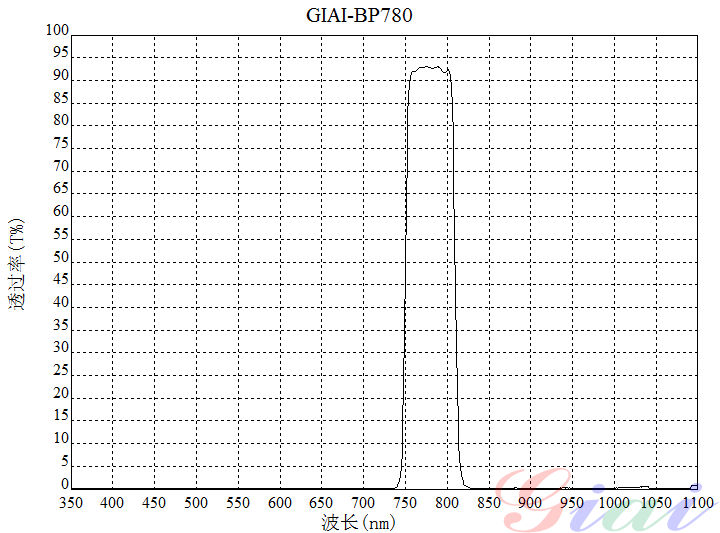

Optical indicator:

The center wavelength: 780 ± 2nm

Transmittance: T>91%

Bandwidth: 42nm

Stop band 350nm-740nm

825nm-1100nm

The cutoff rate: T<0.1%

Product features:

Imports of ultrathin optical glass, high permeability, good smoothness, thickness tolerance, good flatness, optical properties

Imported coating equipment ion sputter coating process, with the film work of high spectrum of solid, good uniformity, stable performance characteristics such as the central wave

Professional manufacturers, and ensure product stability and consistency!

Quality assurance, delivery timely, excellent prices

Other dimensions:

4*4*1.0mm,

5*5*1.0mm,

6*6*1.0mm,

10*10*1.0mm

Application fields:

Red laser container measuring instrument,

Bar code scanner

Desk type bar code scanner

Laser measuring instrument

Red LD laser pumping

Red laser diode

IR rangefinder

Fingerprint identification instrument
